Feature
Texas Instruments DSP
Auto setting
Application to food industry
High Sensitivity

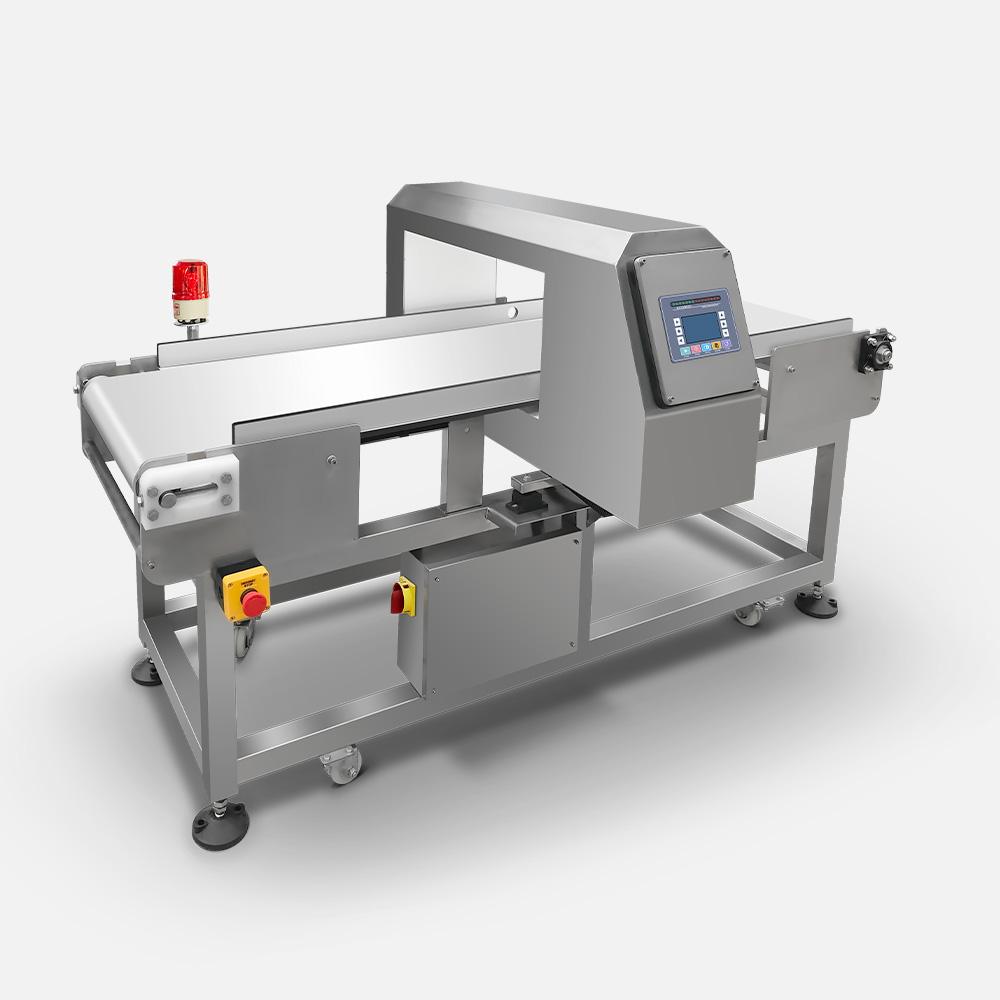

Conveyor Belt Metal Detector
DMD-MAX Metal Detector is widely used in the detection of metal foreign matters in the food industry. It can detect most metal , such as Ferrous,Non-Ferrous (copper, aluminum and other non-ferrous metals), stainless steel, etc. The machine can detect the fine metal such as iron wire, screw, nut and blade mixed in the food.
Any metal can be detected
When the magnetic object enters the detection channel, the upper and lower probes generate signals through the strong magnetic field induction and send the signals to the signal receiving processor, and then the photoelectric controller, the strong electric chip, the sensitivity control chip, the signal receiving chip and the signal output chip and the executive component complete the detection work.
Technical specifications
Dimensions
Detection width
500mm-800mm
Detection height
| 100mm | 120mm | 150mm | 200mm | 250mm |
| Sensitivity |
| Fe |
| Non-Fe |
| Sus |
| Φ≥0.8mm | Φ≥1.0mm | Φ≥1.2mm | Φ≥1.5mm | Φ≥2.0mm |
| Φ≥1.2mm | Φ≥1.5mm | Φ≥2.0mm | Φ≥2.5mm | Φ≥3.0mm |
| Φ≥1.5mm | Φ≥2.0mm | Φ≥2.5mm | Φ≥3.0mm | Φ≥3.5mm |
Perceivable metal
Ferrous,Non-Ferrous,Stainless steel
Chip
Texas Instruments
Sensitivity adjustment
Auto setting
Alarm method
Buzz
Speed of conveyor belt
25m/min
Width of conveyor belt
450mm
Product storage
99 kinds
Moto power
90W
Power supoly
220V/50-60Hz
Net weight
185Kg
Dimensions data
| 1700x880x900mm | 1700x880x920mm | 1700x880x950mm | 1700x880x1000mm | 1700x880x1050mm |
Packing size
| 1800x950x1020mm | 1800x950x1040mm | 1800x950x1050mm | 1800x950x1120mm | 1800x950x1170mm |
HS code
8543709100
